Introduction of hot air circulation oven:
GY/CT-C series hot air circulation oven utilizes forced ventilation. There is an adjustable air distribution plate in the oven, and the material is dried evenly. The heat source can be steam, hot water, electricity, and far infrared, with a wide selection. The whole machine has low noise and balanced operation. Temperature automatic control, easy installation and maintenance. GY/CT-C series hot air circulation oven has a wide range of applications and can dry various materials. It is a general drying equipment. In 1990, the National Medical Administration issued the standard of conduct, and the unified model is RXH.
Application scope of hot air circulation oven:
GY/CT-C series hot air circulation oven is suitable for heating, curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, crude drugs, Chinese herbal decoction pieces, extracts, powders, granules, granules, water pills, packaging bottles, pigments and dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking paint, etc.
Description of hot air circulation oven:
1. Heating heat source steam, electricity, far-infrared, gas and electricity, for users to choose
2. Use temperature: steam heating 50-130℃, maximum 140℃
3. Electricity, far infrared temperature 50-300℃, can be matched with automatic control system or computer control system for users to choose
4. The commonly used steam pressure of GY/CT-C series hot air circulation oven is 0.2-0.8mpa (2-8kg/cm2)
5. Equipped with electric heating, 15kw is calculated according to type 1, and practical 5-8kw/h
6. If the operating temperature is greater than 140℃ or less than 60℃, please indicate when ordering
7. Our factory has a drying car, the size of the baking tray is uniform and can be interchanged
8. Baking tray size: 460X640X45mm

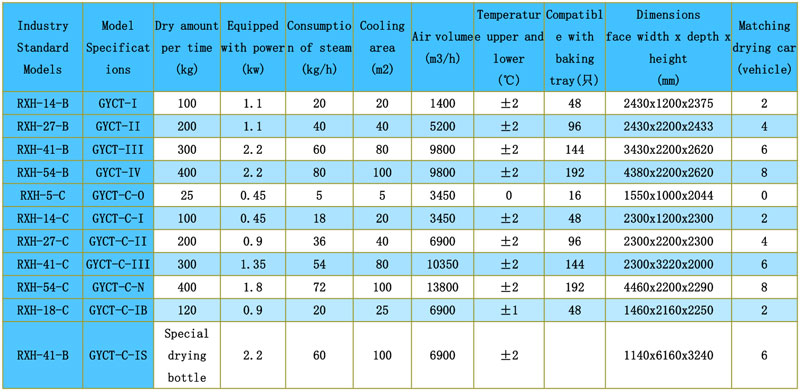

Technical parameters:
