Introduction to the door-to-door sterilization oven:
1. DMH series purifying side-to-side sterilization ovens are suitable for sterilizing vials, ampoules, aluminum caps, tools, and glassware in the pharmaceutical, food and chemical industries to remove heat sources and dry and sterilize solid materials.
2. The control system of DMH series door-to-door sterilization oven adopts imported parts, with sensitive control precision and stable operation.
3. The touch screen and PLC operating system adopts Japan or Germany (Siemens), and the pressure monitoring in the box adopts the American (Dewey) instrument
The principle and characteristics of the door-to-door sterilization oven:
1. DMH series dry heat sterilization ovens are carefully designed and developed by combining the advantages of foreign manufacturing. They are used by domestic and foreign pharmaceutical companies and meet the manufacturing requirements of the new version of GMP, EU certification, and US FDA certification.
2. The dry heat sterilization oven adopts PLC control, with manual/automatic function, touch screen man-machine interface, and double heating protection function.
3. The maximum design temperature can reach 350 °C, and the high efficiency can pass the DOP test no-load heat distribution ±3 °C, and the box can reach the 100-level state.
4. The dry heat sterilization oven adopts a fully welded structure, internal polishing, Ra≦0.4, no dead angle, no acute angle.
5. There are temperature verification interface and DOP detection interface on the device.
6. DMH series products can be selected by users, and can also be customized in terms of configuration and size according to user usage, site, output, etc.
The parameters of the door-to-door sterilization oven

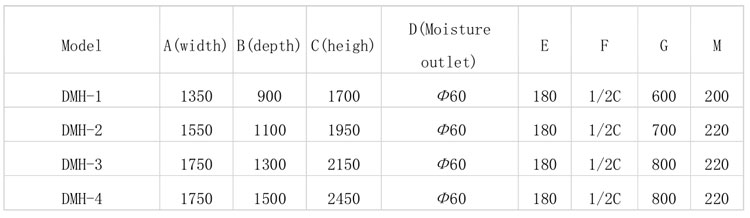

Purification level: 10,000-level Dimensions are as follows:
