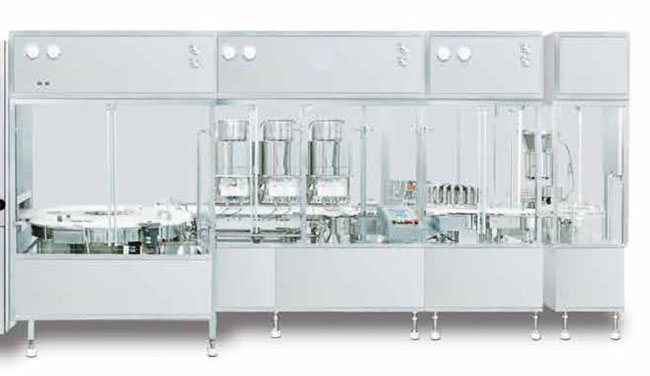

Overview of Screw Dispenser:
The screw packing machine adopts a separate bottle unscrambling tray for unscrambling bottles, 1-6 heads for continuous powder filling, and a specially designed screw that directly divides the powder into the bottle mouth. The filling volume is accurate and the adjustment is convenient. Integrated bottle and stopper synchronization device, accurate packaging, stable and reliable performance, stable and reliable touch screen and PLC control circuit, the equipment has the functions of automatic powder loading, manual powder loading and manual powder discharge, and is equipped with inverted bottle, no bottle, lack of Plug the automatic parking alarm device. It can be used on a stand-alone or linked line.
Parameters of screw distributor:
1. Packing head: 1-6 heads
2. Output (based on 1-2g loading): 1 head, 60-80 bottles/min
2 heads 150-160 bottles/min
4 heads 250-300 bottles/min
6 heads 350-450 bottles/min
3. Packing method: screw packing
4. Weight: about 1550kg
5. Power of the whole machine: about 7.5KW
Features of screw packing machine:
1. The dispensing head directly packs the bottle mouth to avoid cross-contamination of output.
2. The screw filling machine is controlled by servo motor. The characteristics of this machine are that it can withstand frequent starts within 0.01 seconds, and the torque between the output shafts is 3 times the starting torque, and the speed can reach 2300-3800 rpm.
3. The main control system of the screw distributor adopts the German Siemens PLC module technology.
4. The main drive adopts a fully enclosed soft dial mechanism, which avoids the inaccurate positioning of the bottle due to many rotating mechanisms, such as inaccurate positioning of the bottle, misalignment, and capping.
5. The plug adopts a disc-type plug organizer and mechanical plugging, which has a high success rate and stable operation.
6. The whole machine runs smoothly, has stable performance, low failure rate, and is easy to maintain. It adopts the function of water purification, and the operation is simple and convenient without residue.
7. It can be adjusted according to production needs, with a wide range of filling, easy cleaning and high measurement accuracy.
8. It adopts photoelectric sensor detection, and has functions such as shutdown without bottle, no filling without bottle, fault alarm and other functions.
9. The entire area above the machine table is protected by a protective cover.
