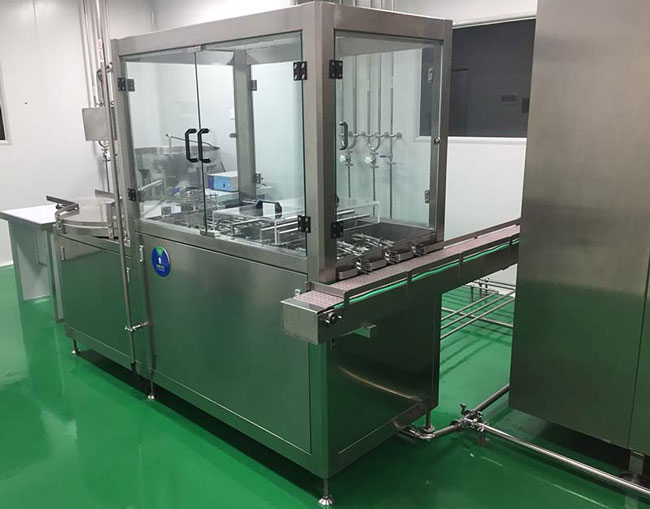

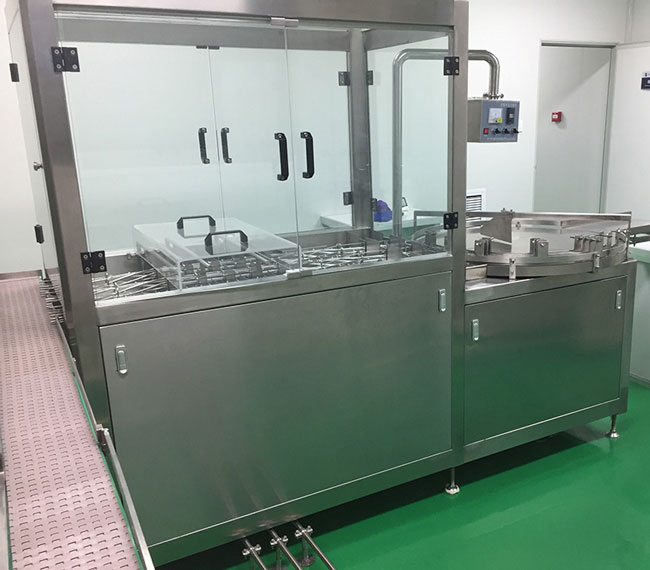

Introduction of Ultrasonic Oral Liquid Bottle Washing Machine:
The oral liquid bottle is a long straight tube bottle, the color is generally brown, white or brown, the diameter of the bottom of the bottle is small, and the height is relatively high, which determines whether the oral liquid bottle is in the process of washing the bottle or in the process of filling. , it is easy to pour the bottle, so the bottle washing equipment on the market is generally not easy to use. In view of this feature of oral liquid bottles, our company does not use a turntable for bottle feeding in the bottle unscrambler part of the bottle washing machine. Instead, the mesh belt is used for bottle feeding, which completely eliminates the disadvantage of pouring bottles.
The operation process of the oral liquid bottle washing machine is as follows: the mesh belt unscrews the bottle into the bottle, first fills the oral liquid bottle with water, and then enters the ultrasonic cleaning. - Compressed air blowing - Injection water spraying - Compressed air blowing, oral liquid bottles cleaned with three water and three vapors fully meet the filling production requirements and meet the national "GMP" requirements.
Parameters of Ultrasonic Oral Liquid Bottle Washing Machine:
1. Bottle cleaning speed: 100-320 pcs/min (variable frequency controllable and adjustable)
2. Range of cleaning oral liquid bottles: 10ml-20ml oral liquid bottles
3. Bottle breaking rate: ≤0.1‰
4. Ultrasonic power: 2-4KW
5. Working voltage: 380/220V 50Hz (three-phase four-wire system)
